Illegal fields (i.e. out of range) are color-coded orange while fields with error (e.g. bad FCS) are filled with red color.
Note: The user can change the Error and Warning default colors within the User Preferences tool. See more in par. 19.4.

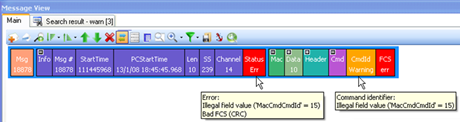

Figure 146 – Messages with Error/Warning
Note: The Info status field contains all errors/warnings related to this message.
Legal fields that have application errors or warnings (e.g. wrong ICMP checksum, failed status, etc.) will be marked with a red border:

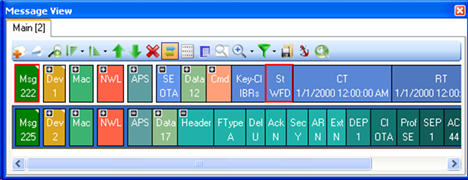

Figure 147 – Messages with Applciation Error/Warning
Pending Preferences settings, a field with an error in one of its sub fields can be automatically expanded and/or filled with error/warning color. See more in par. 19.4.
Note: The Application Status subfield included in the Info field (AppStat), contains all application errors/warnings related to this message.
